XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor

Name: XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum Copper Conductor
Brand: Yifang
Price: 1 USD

China XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor wholesale

Brand Name : Yifang

Model Number : Concentric

Certification : ISO, CE, SGS, BV

Place of Origin : China

MOQ : 1000m

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : According to order qty.

Delivery Time : According to order qty.

Packaging Details : Wooden Drums, Steel-wooden Drums, Steel Drums etc.

Voltage : 0.6/1KV

Phase Conductor : Copper or Aluminum

Insulation : XLPE

Neutral Conductor : Copper or Aluminum

Jacket : HDPE

Cable Core : Single or multicores with communication core

Contact Now

1000V Aluminum Conductor XLPE Insulation HDPE Sheath Concentric Cable

Application:

The cables are for the service-entrance.

Applicable standards:

As per Customer’s technical specifications

Production Scope:

Rated Voltage: Up to 600V or upon customer’s request

Core Number: 1, 2, 3 cores with neutral core

Coverage: 100% and non-100% coverage

Nominal cross section: 6AWG to 4/0AWG

Construction:

For Main Core:

Conductor: Copper or Aluminum

Insulation: XLPE/PE/ PVC

For Neutral conductor: Copper or aluminium, Wrapped on insulation or inner sheath

For Communication core (optional):

Conductor: Copper

Insulation: PE

External coverage: XLPE, PVC, PE (Weather resistant)

Cable Core	1 core
Conductor	Copper or Aluminum
Insulation	XLPE
Neutral Conductor	Copper or Aluminum
Communication Core Conductor	Copper
Communication Core Insulation	XLPE
Jacket	PVC or PE
Voltage	600/1000V

Factory Pictures:

XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor

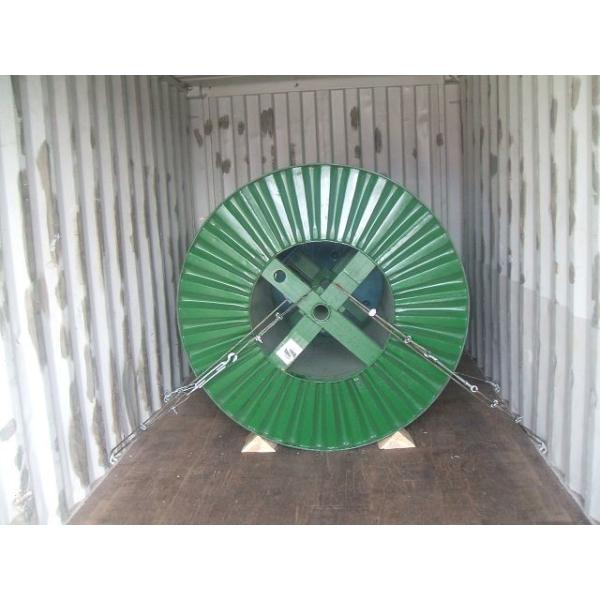

Loading Containers:

XLPE Insulation HDPE Sheath Concentric Cable 1000V Aluminum / Copper Conductor

We can design and produce according to client's requirement. Welcome to contact us for any more information!
